This is 310ml 310ml cartridge sealant which adopts the pneumatic push mode. There is no piston in the cylinder, and the hard rubber hose is supported by the spring pad mode to achieve the real start push.It is the construction, household appliances, automobiles, containers and other industries that need to implement viscose and special tools in the process of sealing. The operation is simple, convenient, quick and labor-saving, especially suitable for large-area continuous operation. For the automotive, electronics and construction industries, durable, high-quality and efficient labor.
With a rope piston, to prevent excessive pressure to break the rubber cover wounding.
With the table air pressure regulating valve, please test whether the air pressure is normal before working, ventilate, adjust the pressure regulating button to ensure that the air pressure reaches 6bar.
Aluminum alloy fixture, fixed by two hexagon socket screws. Guaranteed durability and easy removal.
Aluminum alloy front and rear cover, sturdy and durable, when placing the micro-cylinder, please tighten the front and rear covers to prevent air leakage.
Trigger switch, trigger type design more contact surface, better control, reflecting humanized design, easy to operate and grasp
Name:310ml cartridge sealant
Material:aluminum and plastic
Type: Cartridge Gun, One Component Air Caulking Gun
Power Source: Air
Max Pressure: 6.8 bar operating pressure
Thrust: 1.45kN (145kgf) thrust
working pressure: 0 to 145psi
Air consumption: 1 cubic meter per minute
Working Noise Figure: Below 70 dB
Feature: lightweight and dripless function or non-drip function

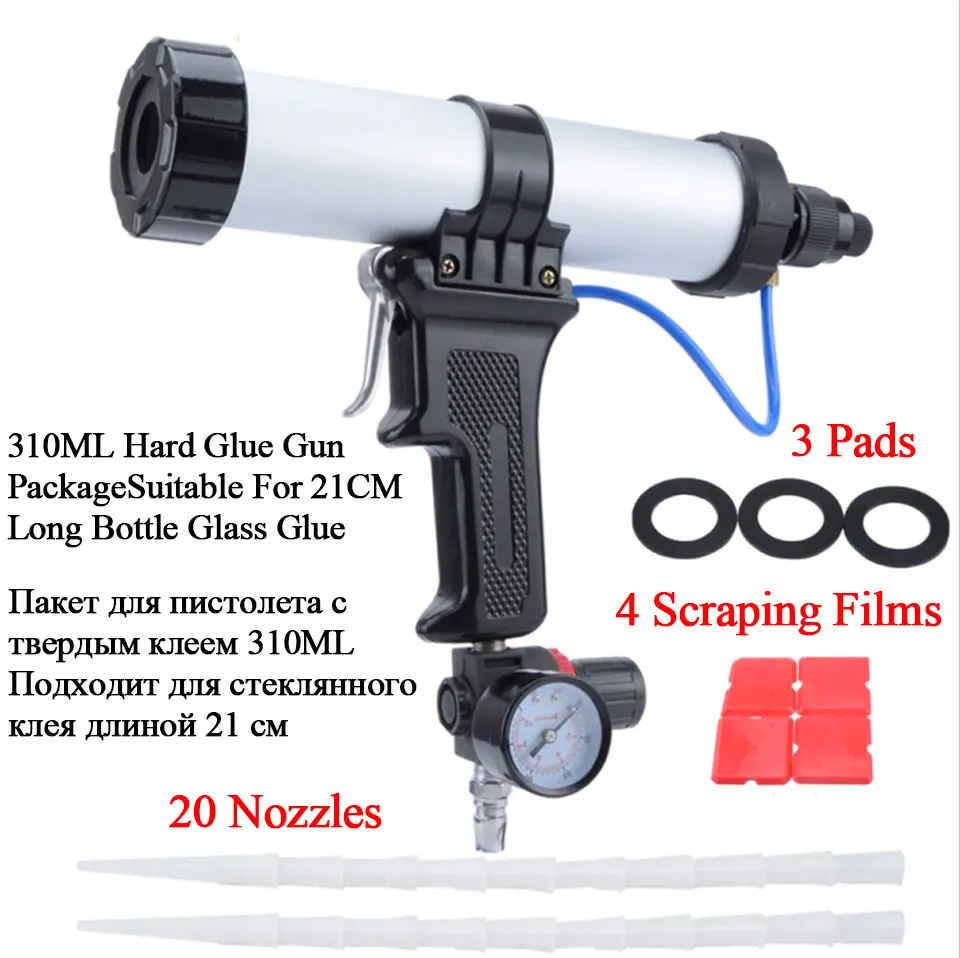

1 X 310ml cartridge sealant
1 X Meter regulator
3 X Rubber pads
4 X Doctor blade
20 X Rubber nozzles
