New 2 in 1 Portable Soldering Station SMD For Hot Heat Air Gun  Rework Repair Welding Station Tool Kit BGA Soldering Stations






_01_02_03_04_05_06_07_08_09_10

Nstructions :

1.When the power is connected, the buzzer will ring, indicating that the power is initialized.

2.Turn on the air gun, shor t press the air gun switch, the air gun is turned on.

3.Turn on the soldering iron, shor t press the soldering iron switch, the soldering iron is turned on.

4.Set the temperature of the air gun, shor t press the "*" button until the number of the air gun display screen is the first time to flash. Press the "▲" or "▼" button to set the temperature needed for the air gun.

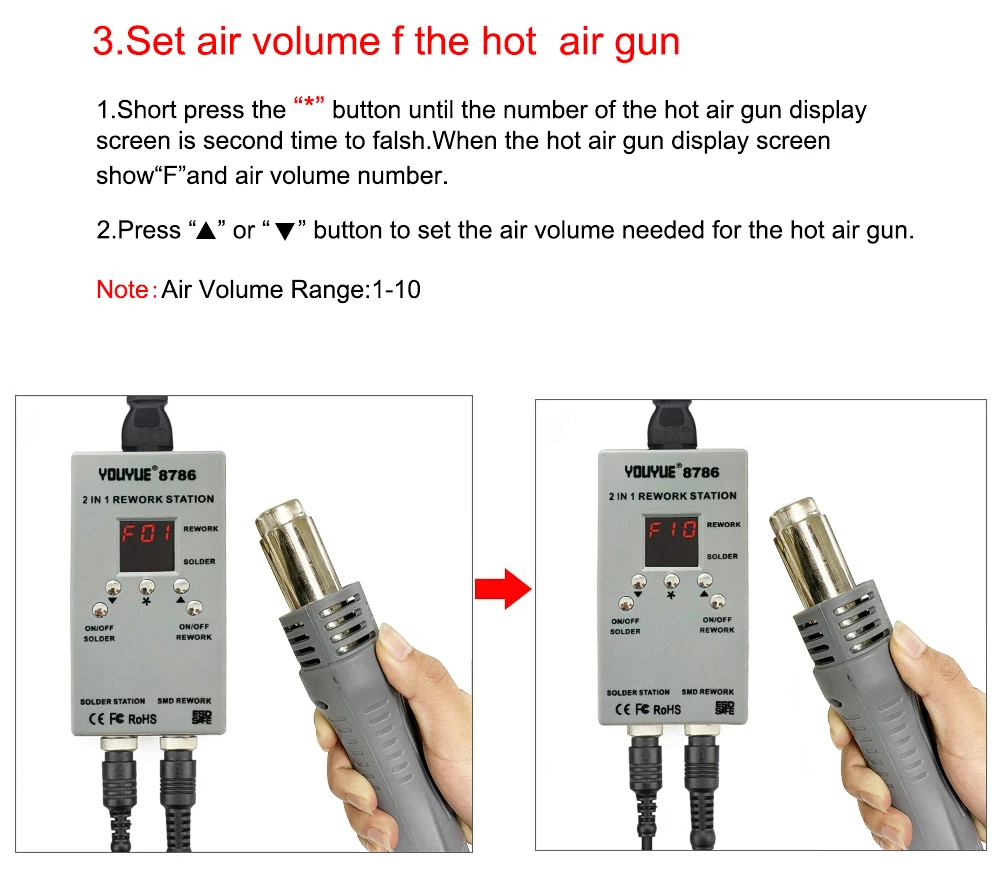

5.Set the air volume of the air gun, shor t press the "* " button until the number of the air gun display screen is second time to flash. When the air gun display screen displays "F" and air volume number, press the "▲" or "▼" button to set the air volume needed for the air gun.

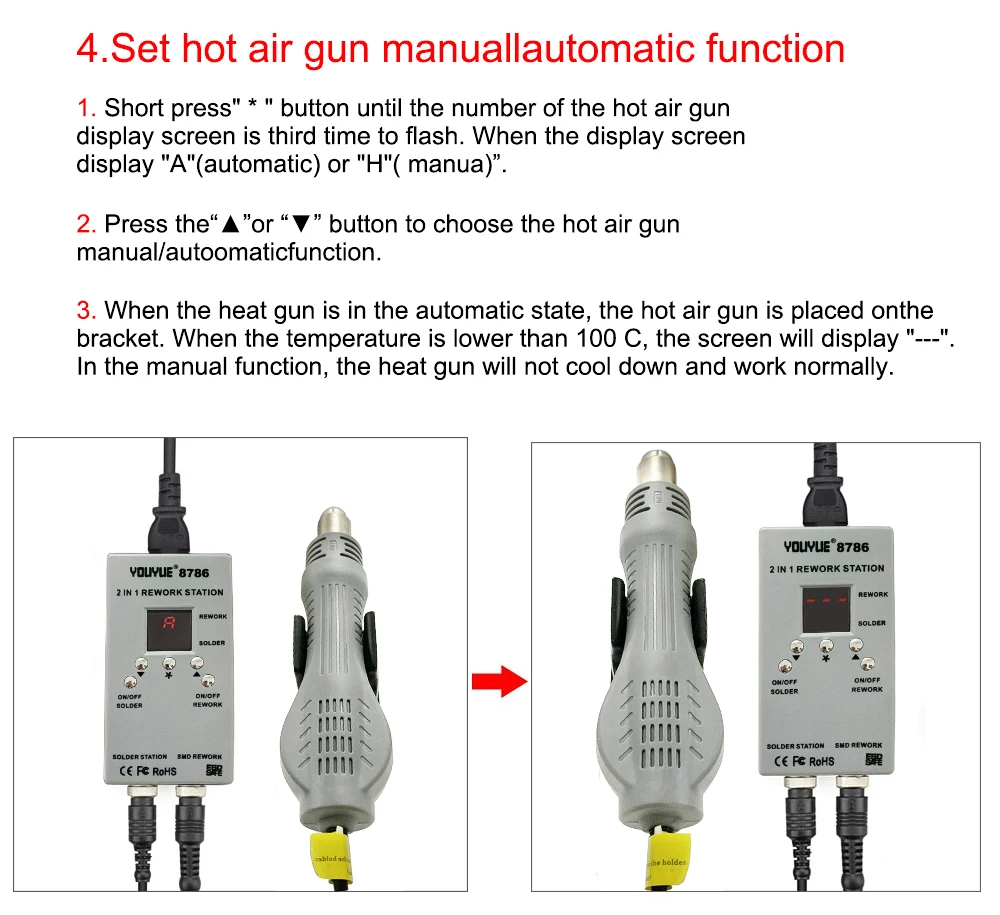

6.Set the air gun manual / automatic function, shor t press the "* " button until the number of the air gun display screen is third time to flash. When the display screen displays "A (automatic)" or "H (manual)", press the "▲" or "▼" button to choose the air gun manual / automatic function; When it is in automatic state, the air gun will automatically cool down on the bracket, and will stop working when the temperature is less than 100 ℃.  When it is in manual state, the air gun will not cool down on the bracket, and will still work normally.

7.Set the air gun compensation temperature, long press the "* " button, then the air gun display screen and the soldering iron display screen will display the respective compensation temperature numbers, then shor t press the "* " button until the air gun display screen numbers is flash, press the "▲" or "▼" button to set the compensation temperature needed for the air gun.

8.Turn off the air gun, long press the air gun switch, the air gun is turned off.

9.Set the temperature of the soldering iron, shor t press the "* " button until the number of the  soldering iron  display screen is the first time to flash. Press the "▲" or "▼" button to set the temperature needed for the soldering iron.

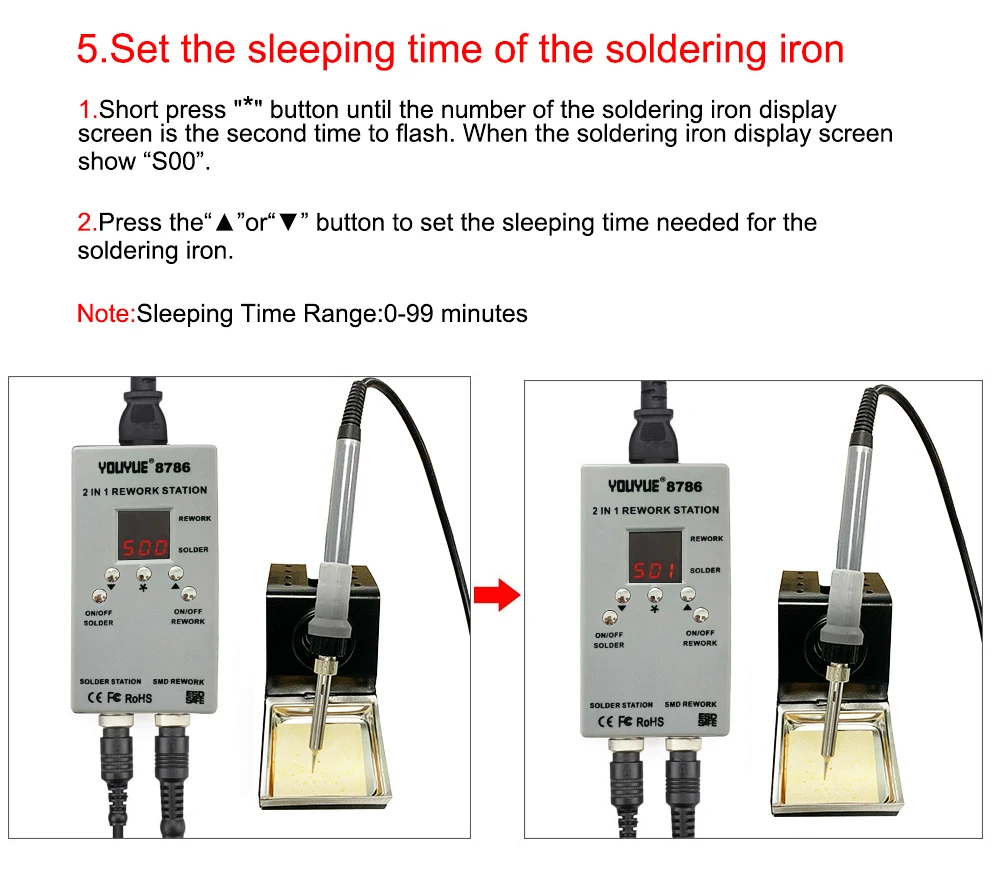

10.Set the sleeping time of the soldering iron, shor t press the "* " button until the number of the soldering iron display screen is the second time to flash. When the soldering iron display screen displays "S" and sleeping time, press the "▲" or "▼" button to set the sleeping time needed for the soldering iron. The sleeping time of  the soldering iron can  be set between 0 and 99 minutes. Be careful, when the sleeping time is "00", the solding iron will keep working and not sleep.

11.Set the compensation temperature of the soldering iron, long press the "* "  button until the air gun and soldering iron display screen display the respective compensation temperature numbers, then shor t press the "* " button until the soldering iron display screen number is flash. Press the "▲" or "▼" button to set the compensation temperature needed for the soldering iron.

12.Turn off the soldering iron, long press the soldering iron switch, the soldering iron is turned off.

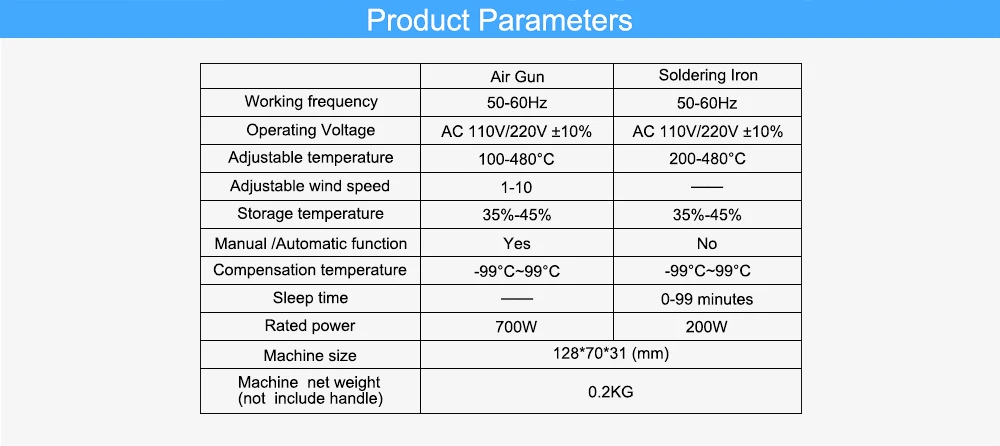

Air gun

Soldering iron

Operating frequency

50-60Hz

50-60Hz

Operating voltage

AC110V±10%/AC220V±10%

AC110V±10%/AC220V±10%

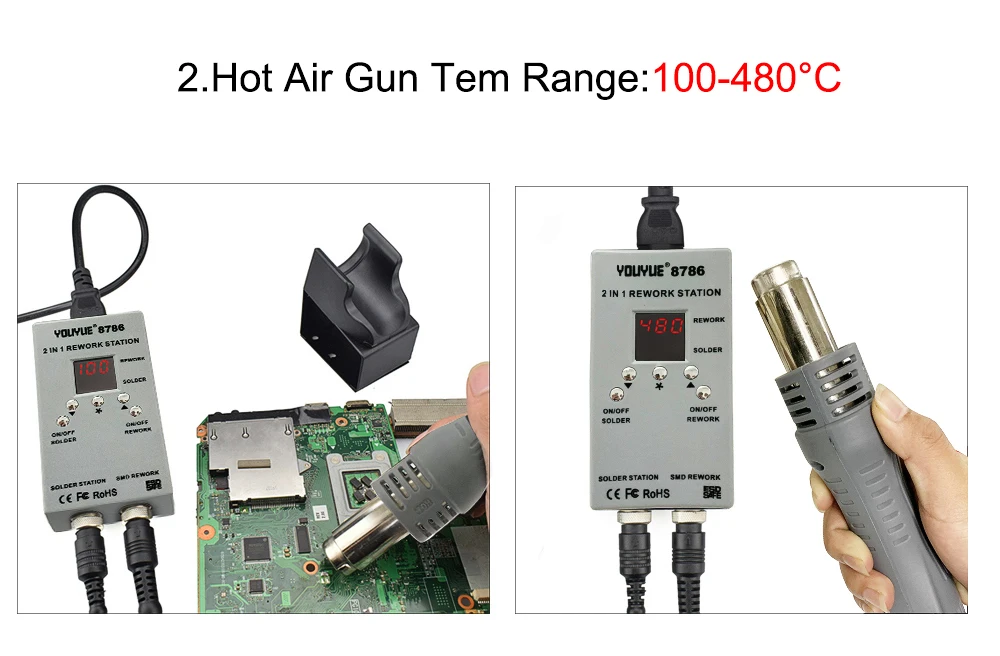

Adjustable temperature

100-480℃

200-480℃

Adjustable pressure

1-10



Storage humidity

35%-45%

35%-45%

Manual/automatic function

Yes

No

Compensation temperature

-99℃ ~ 99℃

-99℃ ~ 99℃

Sleeping time



0-99minutes

Rated power

700W

200W

Machine size(mm)

128*70*31

Machine  net weight

(not  include handle)

0.2KG
